2625792

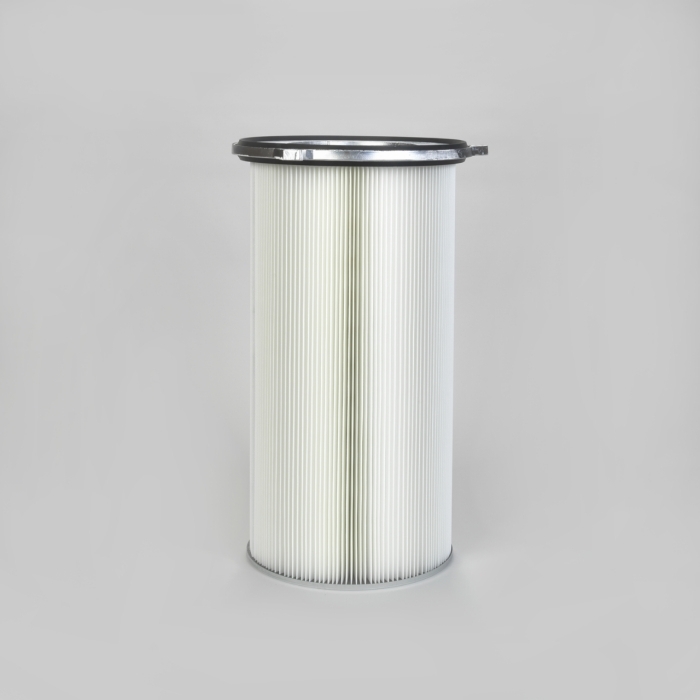

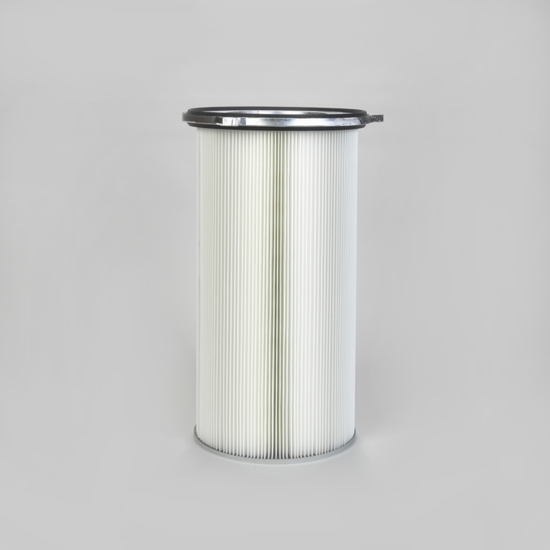

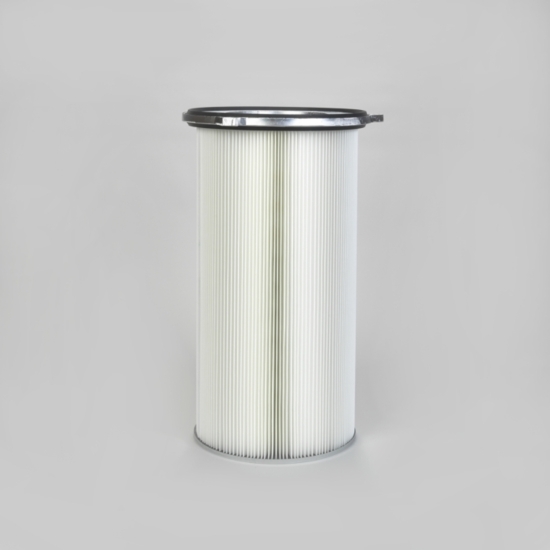

Cartridge Filter with open top end cap with 3 hooks, 397 mm pitch diameter and closed bottom end cap in Torit-Tex (Polyester Spunbond) TT9032, 325 mm outer diameter x 1200 mm long; Special features: Earthed and Dirty Air Plenum and Clean Air Plenum installation for Series 325 and other brands of cartridge collectors

Diameter (mm)	325
Inner Diameter (mm)	213
Length (mm)	1200
Media	Torit-Tex
Media Weight (g/m²)	115
Area (m²)	21
Unit Family	Farr-Tenkay
Pitch Diameter (mm)	397
Top End Cap Design	Open with 3 Hooks
Bottom End Cap Design	Closed
Earthed	Yes
Flame Retardant	No
Outer Liner	No
End Cap/Liner Material	Galvanized Steel
Gasket Position	Above and Below Top End Cap
Pleath Height (mm)	51
Number of Pleats	323
Max. Temp (°C)	93
Volume (m³)	0.227427
Weight (kg)	12.5
