2625181-000-440

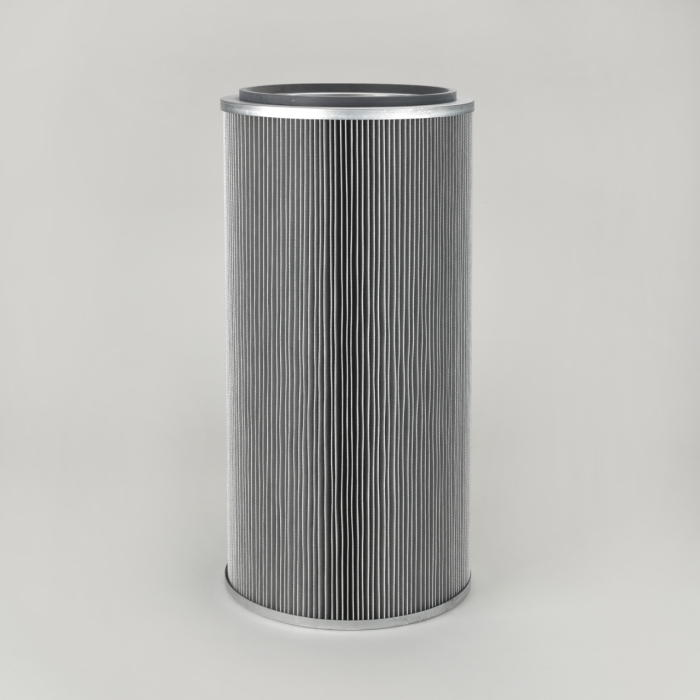

TD-style Cartridge Filter in Ultra-Web Spunbond Anti-Static, 324 mm outer diameter x 660 mm long; Special feature: Earthed with open top end cap and closed bottom end cap with 13.5 mm bolt hole for ECB, TD and other brands of cartridge collectors

Diameter (mm)	324
Inner Diameter (mm)	213
Length (mm)	660
Media	Ultra-Web Spunbond Antistatic
Media Weight (g/m²)	114
Area (m²)	10.2
Unit Family	DFT / DF+
Top End Cap Design	Open
Bottom End Cap Design	Closed with hole 13.5 mm
Earthed	Yes
Flame Retardant	No
Outer Liner	No
End Cap/Liner Material	Galvanized Steel
Gasket Position	Above Top End Cap
Pleath Height (mm)	51
Number of Pleats	171
Max. Temp (°C)	93
Volume (m³)	0.1136
Weight (kg)	6.292
