P191827-016-340

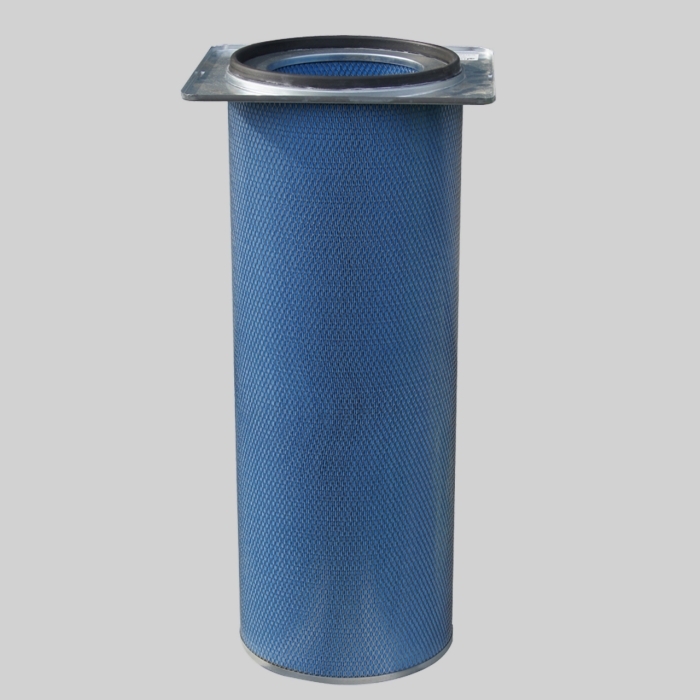

Ultra-Web Flame Retardant Cartridge Filter, 324 mm outer diameter X 660 mm long (12.74-inch outer diameter X 26.00-inch long), Open/Closed Endcaps with 361 mm x 406 mm (14.22-inch x 15.98-inch) Rectangle Flange for Farr Tenkay and other brands of cartridge collectors.

Diameter (mm)	324
Inner Diameter (mm)	211
Length (mm)	660
Media	Ultra-Web Flame Retardant
Media Weight (g/m²)	130
Area (m²)	21
Unit Family	TD / ECB / DFP / PT1001
Top End Cap Design	Open (Square)
Bottom End Cap Design	Closed
Earthed	No
Flame Retardant	Yes
Outer Liner	No
End Cap/Liner Material	Galvanized Steel
Gasket Position	Above Top End Cap
Pleath Height (mm)	50
Number of Pleats	323
Max. Temp (°C)	82
Volume (m³)	0.1171324432
Weight (kg)	8.334753
