2625001-000-440

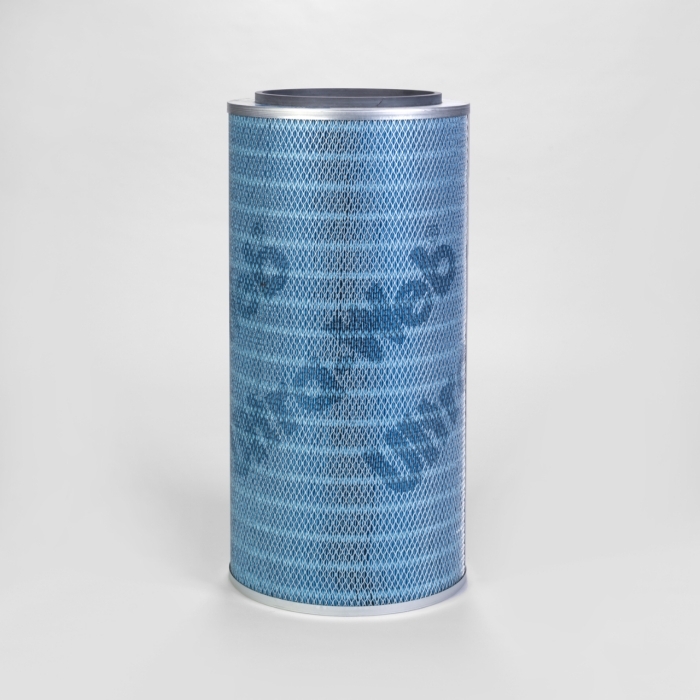

DF-style Cartridge Filter in Ultra-Web, 324 mm outer diameter x 660 mm long with open/open end caps for Downflo (DF) and other brands of cartridge collectors

Diameter (mm)	324
Inner Diameter (mm)	213
Length (mm)	660
Media	Ultra-Web
Media Weight (g/m²)	114
Area (m²)	21.6
Unit Family	TD / ECB / DFP / PT1001
Top End Cap Design	Open
Bottom End Cap Design	Open
Earthed	No
Flame Retardant	No
Outer Liner	Yes
End Cap/Liner Material	Galvanized Steel
Gasket Position	Above Top End Cap
Pleath Height (mm)	51
Number of Pleats	323
Max. Temp (°C)	65
Volume (m³)	0.0959
Weight (kg)	5.35
